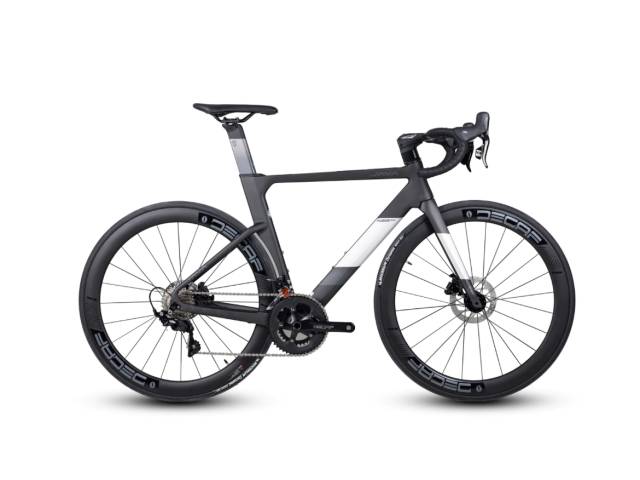

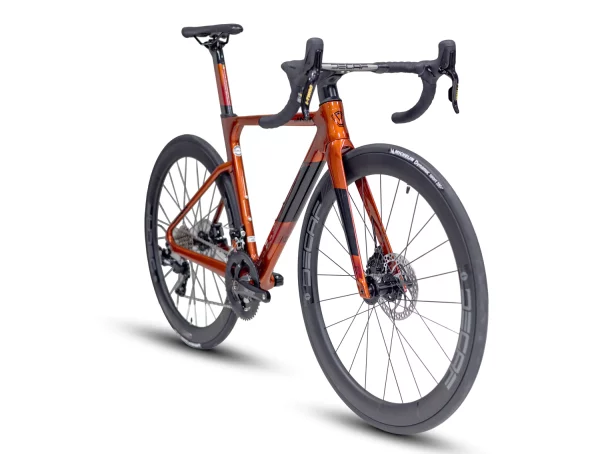

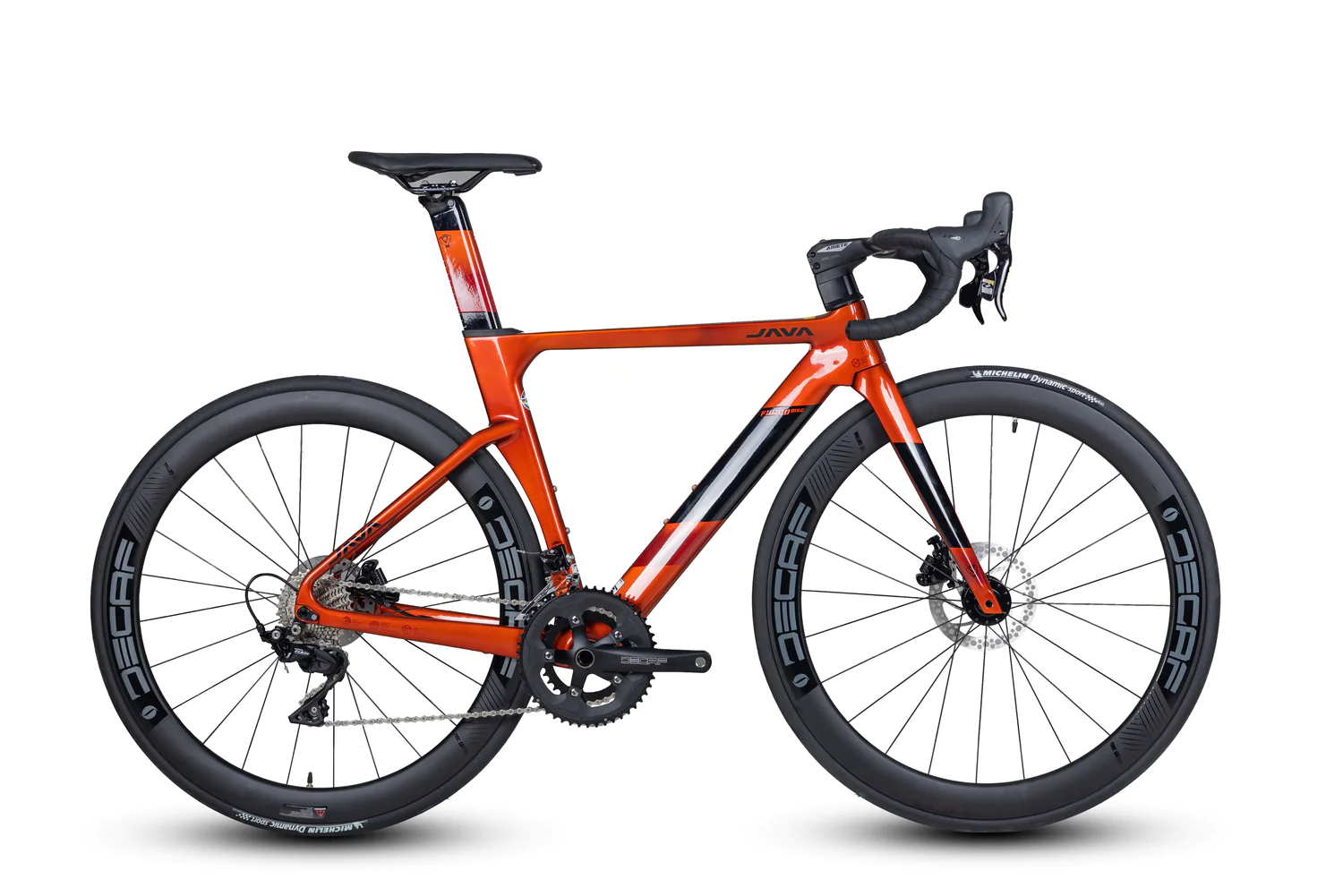

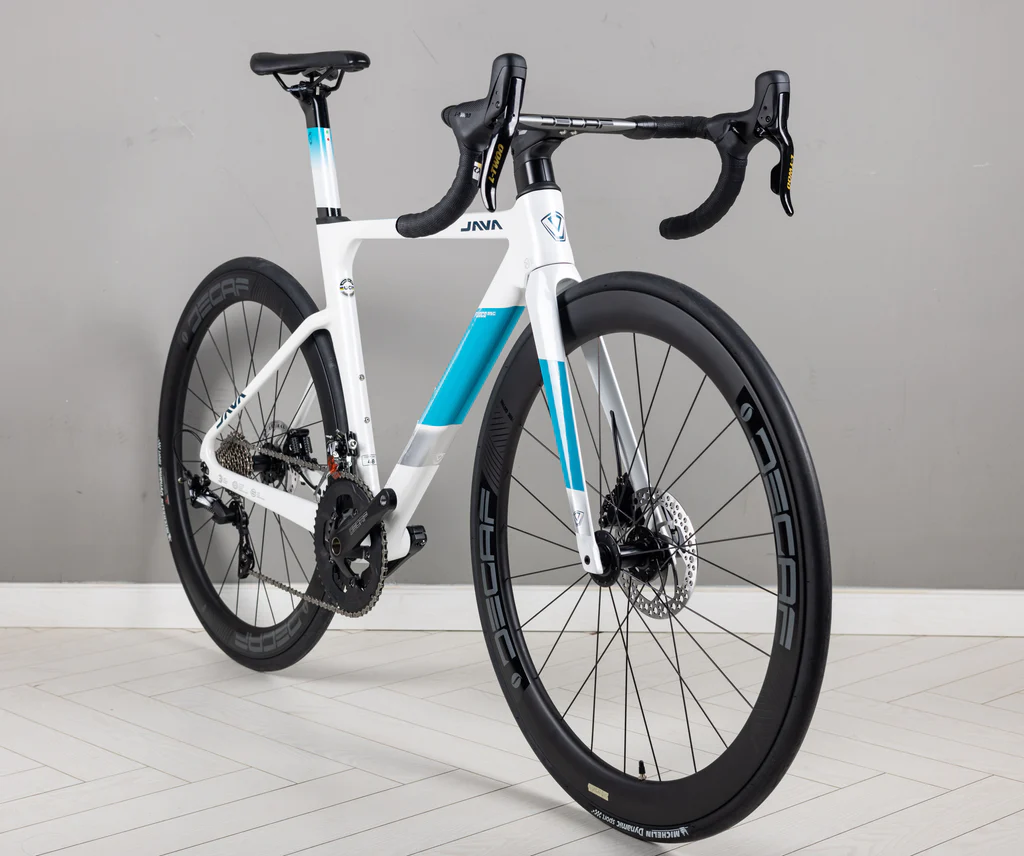

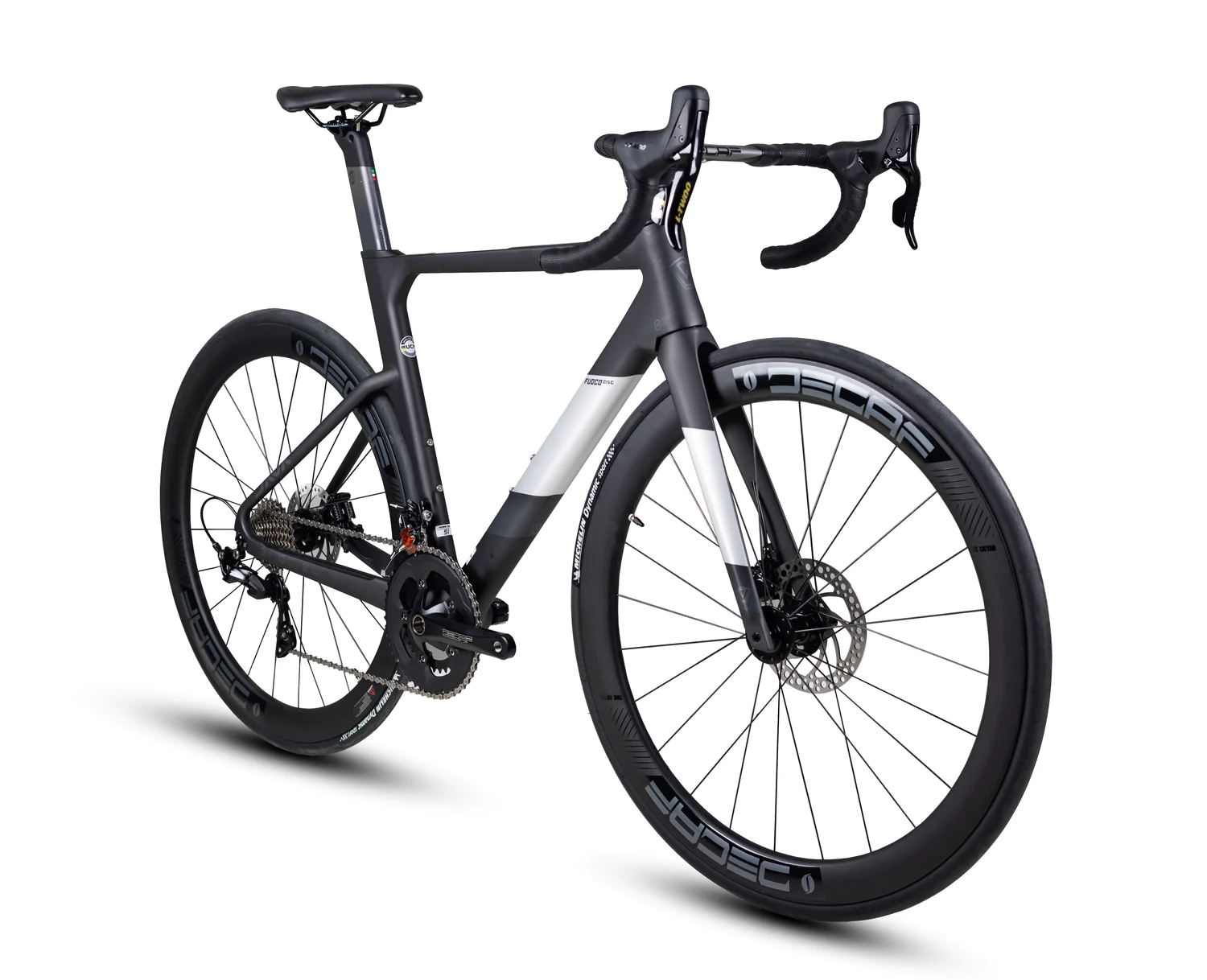

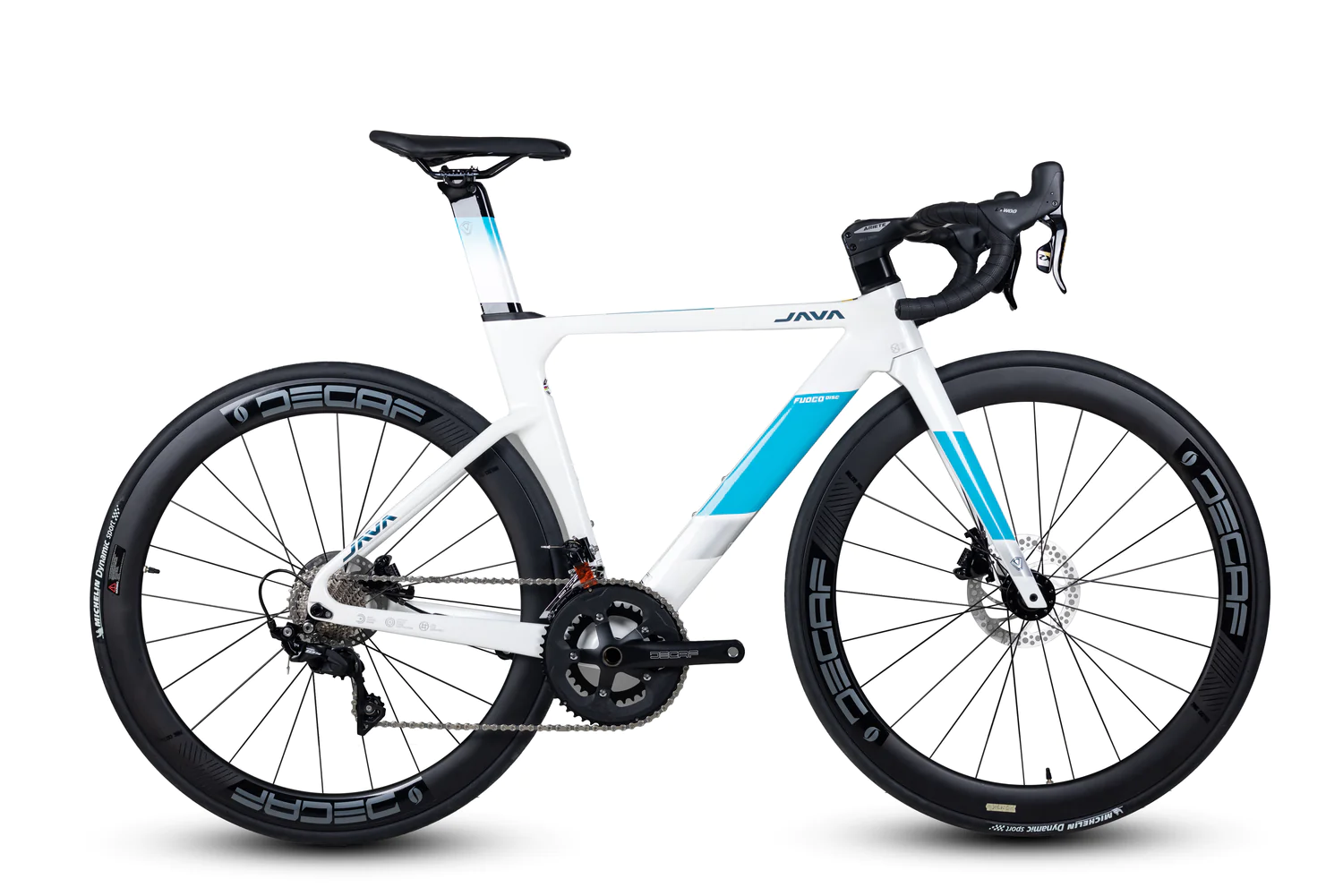

JAVA Fuoco Top 12 Speed with Hydraulic Brakes and Carbon Wheel

Original price was: د.إ5,000.00.Current price is: د.إ4,900.00.

+ Free Shipping
Category:

JAVA Fuoco Top is an aerodynamics series road bike. It has a carbon Integrated Handlebar and JAVA Decaf carbon wheelset ready, every inch of this bike is designed to provide aero gains across the board – wind tunnel-optimized tube profiles

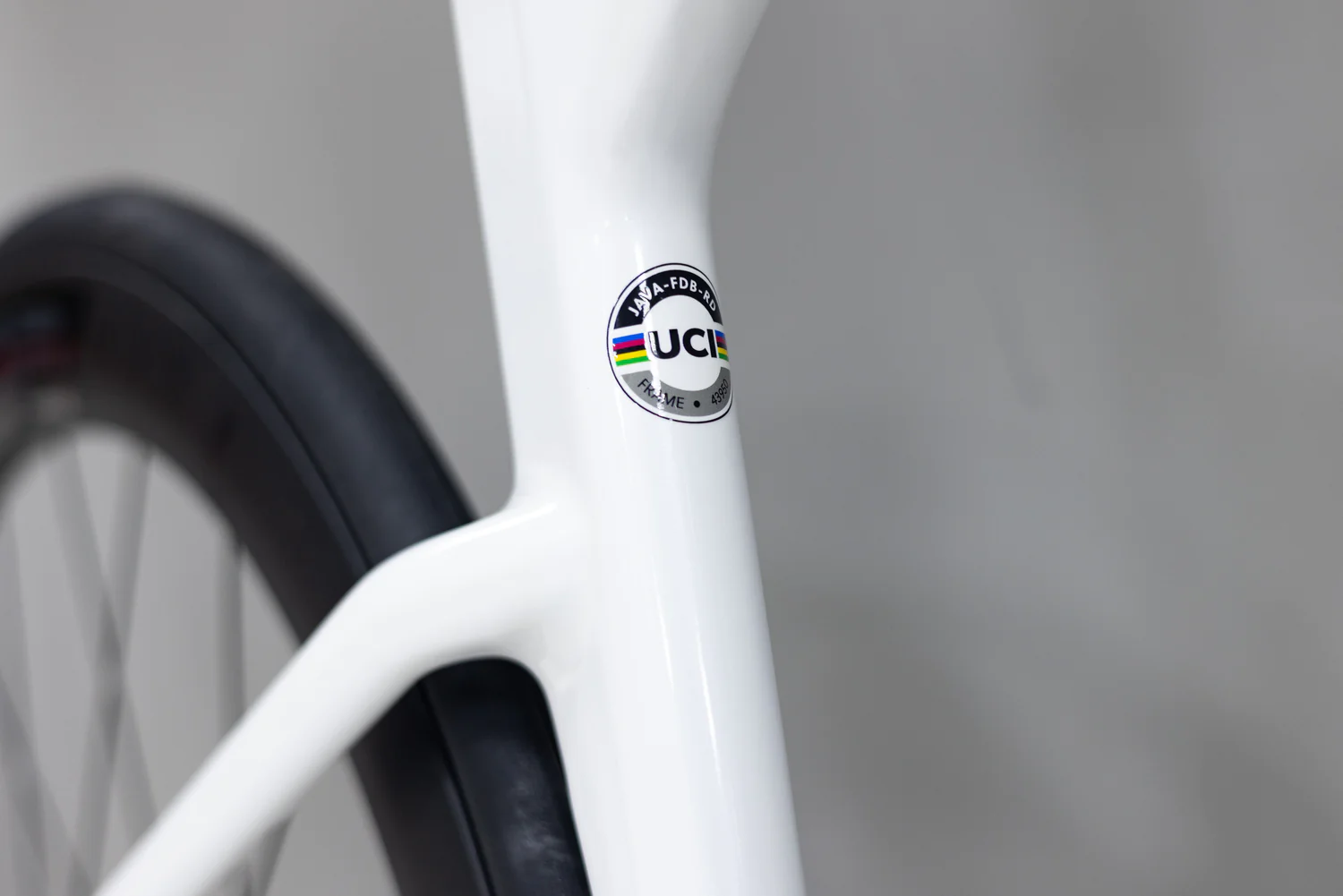

  • UCI-certified and geometric design for long-distance endurance and comfort, this frame suits general sports and racing.
  • The frame’s dynamic lines express the bike’s enhanced aerodynamics and agile handling. With its carefully crafted details, it embodies an aero road bike that unites all its functions and features into a perfect whole. The clear, dynamic form speaks for itself.
  • L-Twoo 12-speed transmission and RX hydraulic brakes keep you safer and more confident on different roads.

Specification

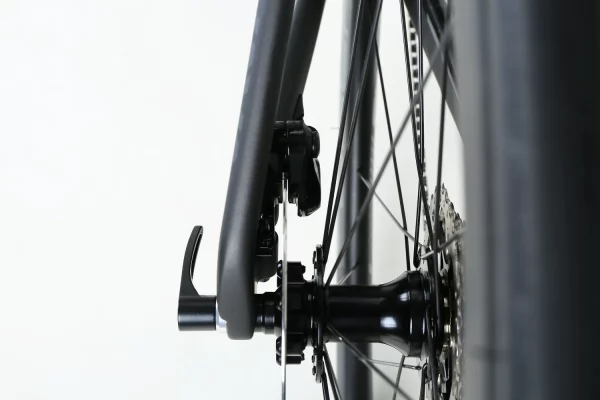

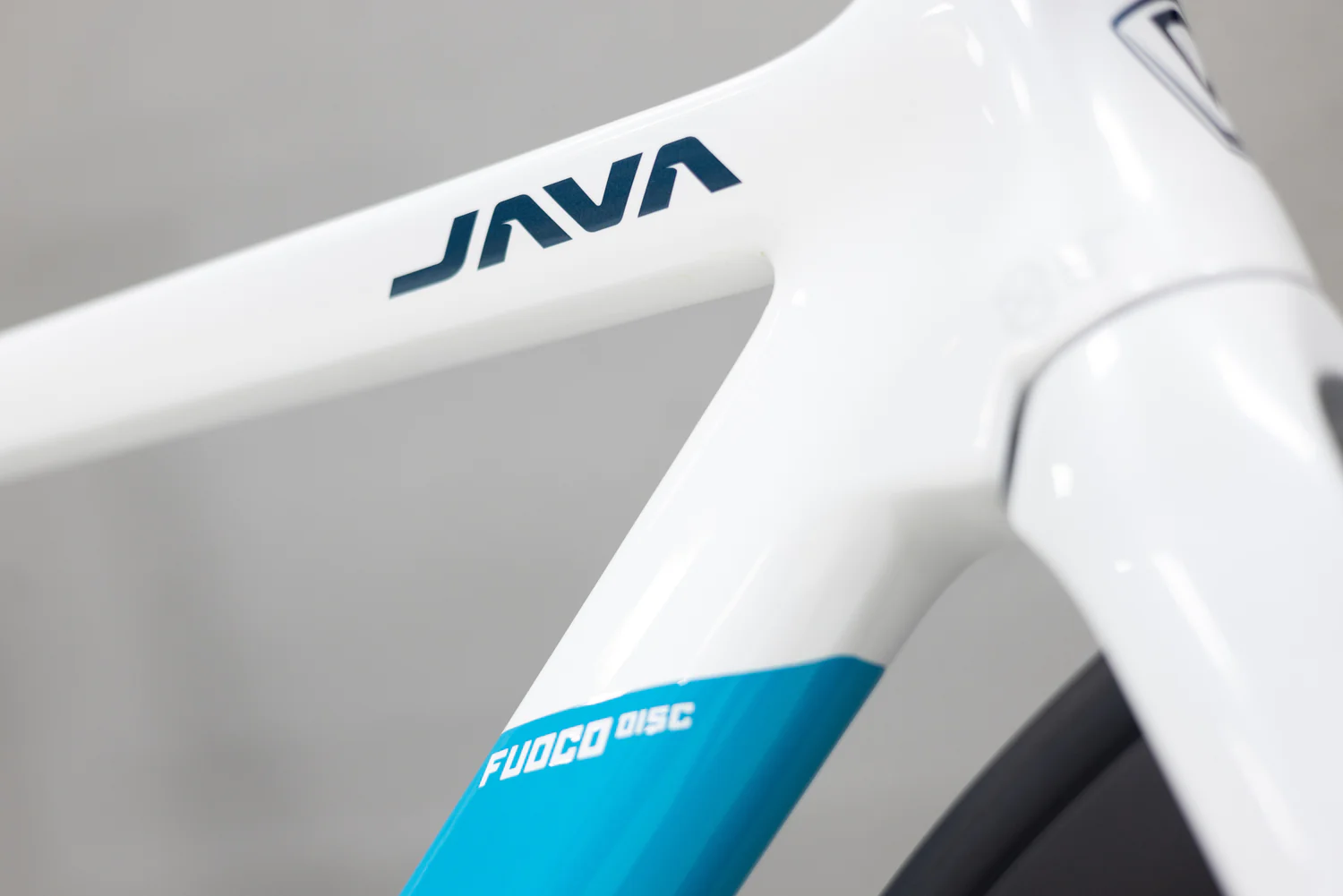

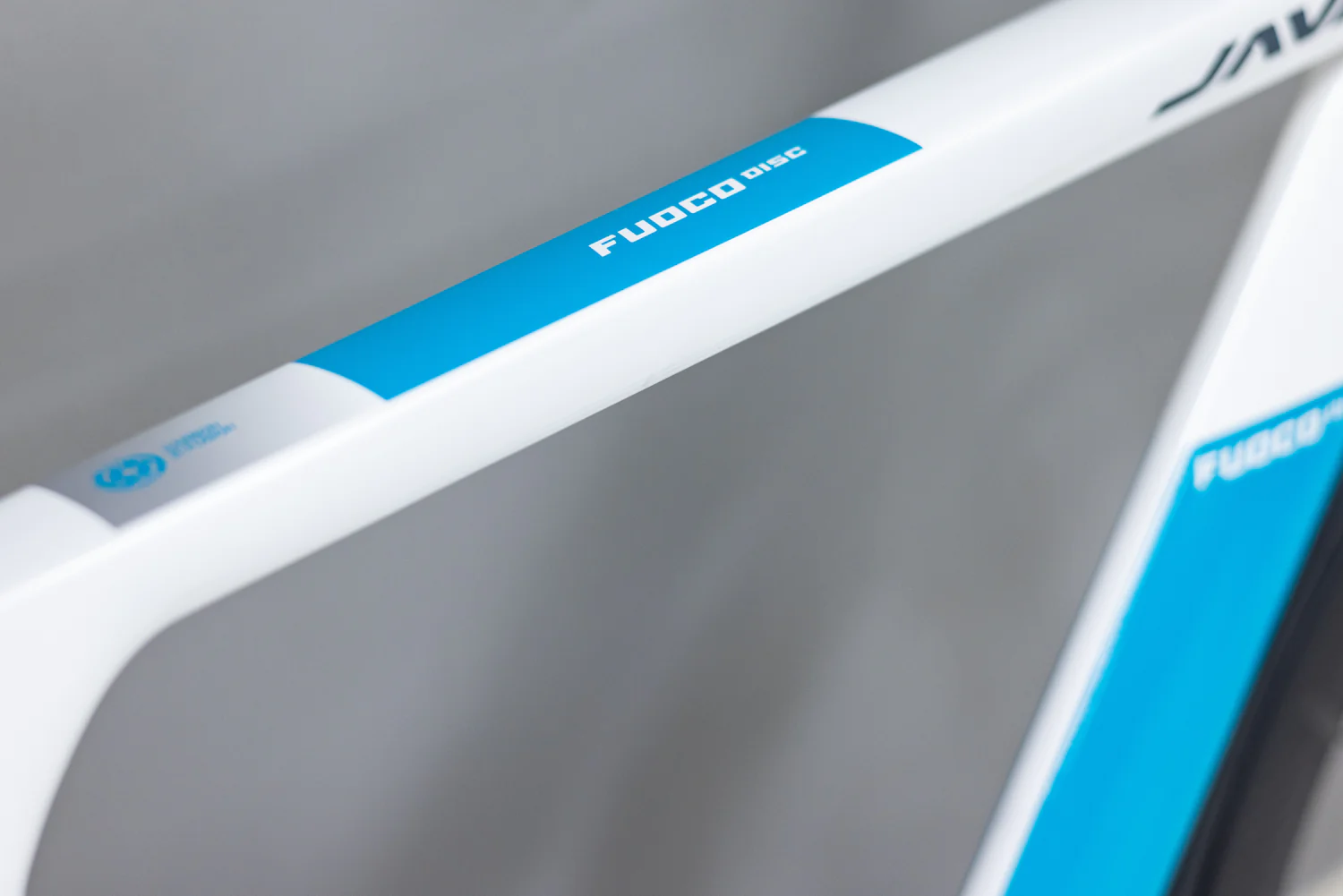

  • Frame: J-AIR Fuoco carbon aerodynamics frame with UCI certified,12×142mm thru-axle, Flat Mount Disc
  • Fork: JAVA Fuoco, Carbon,12×100mm thru-axle, Flat Mount Disc

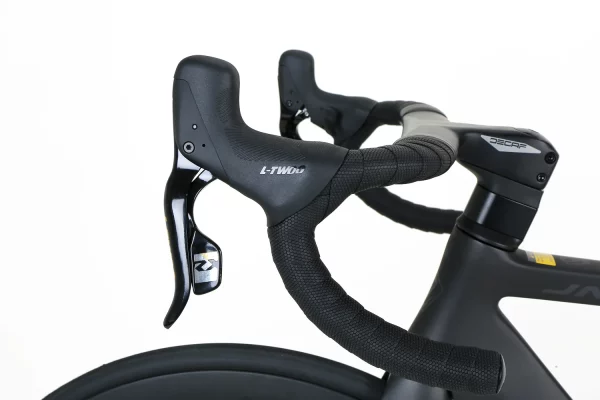

  • Shifter: L-TWOO RX ST-R5012 2*12 Speed
  • Front derailleur: Shimano 105 R7000,braze-on
  • Rear derailleur: Shimano 105 R7000, shadow design
  • Crank: Prowheel RPL 165/170mm,50-34T

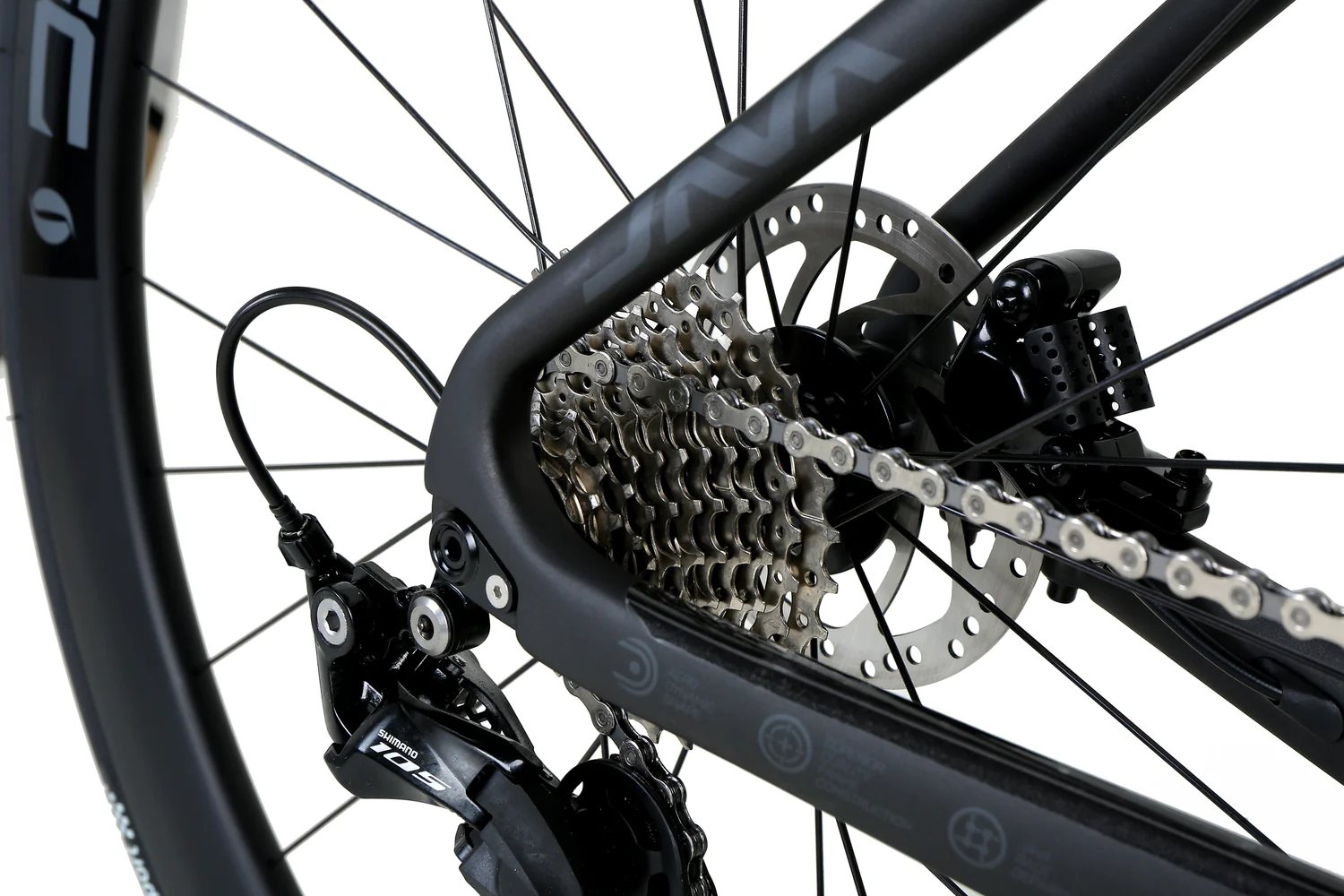

  • Cassette: HR12-32T,12 speed
  • Chain: KMC X12 108L

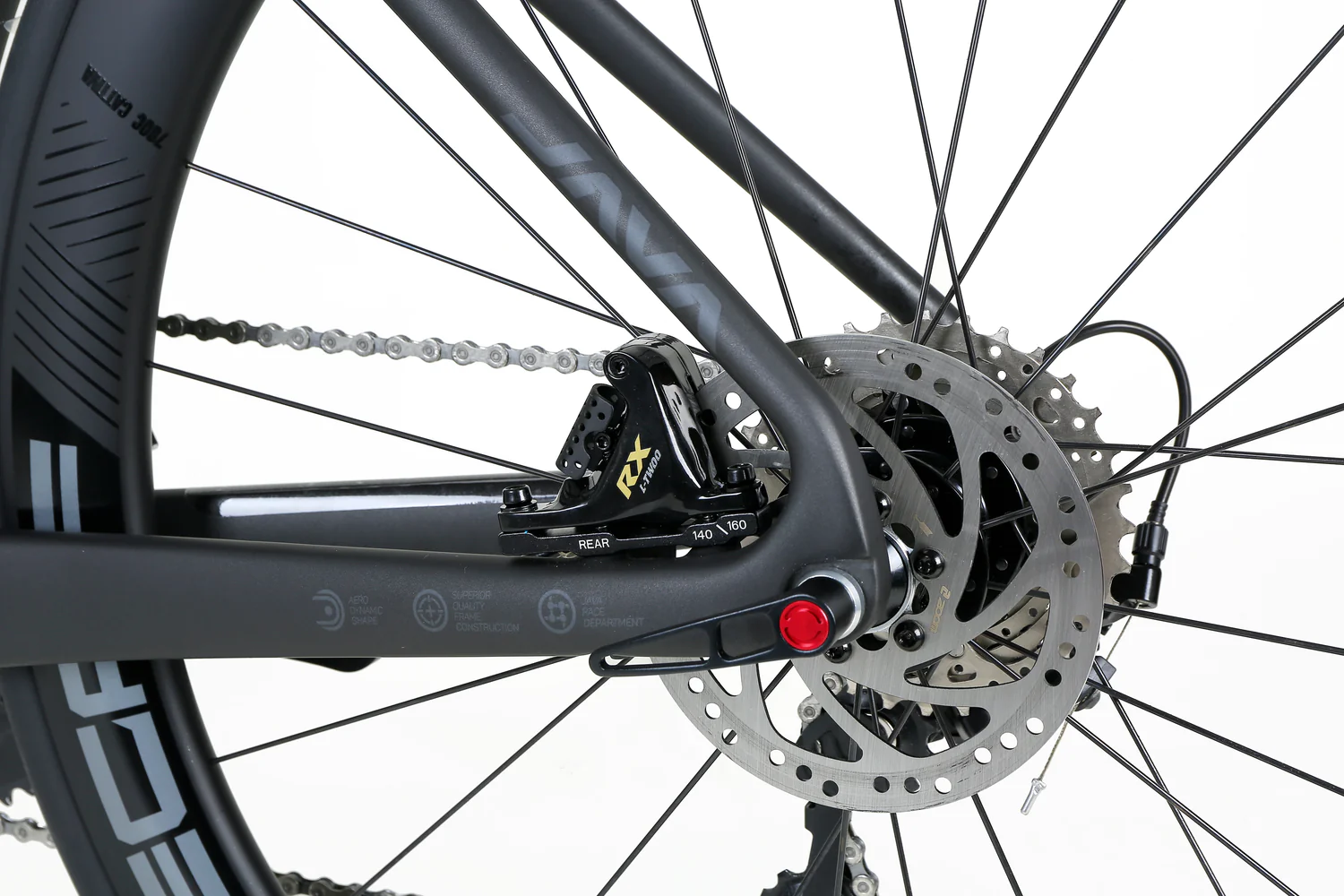

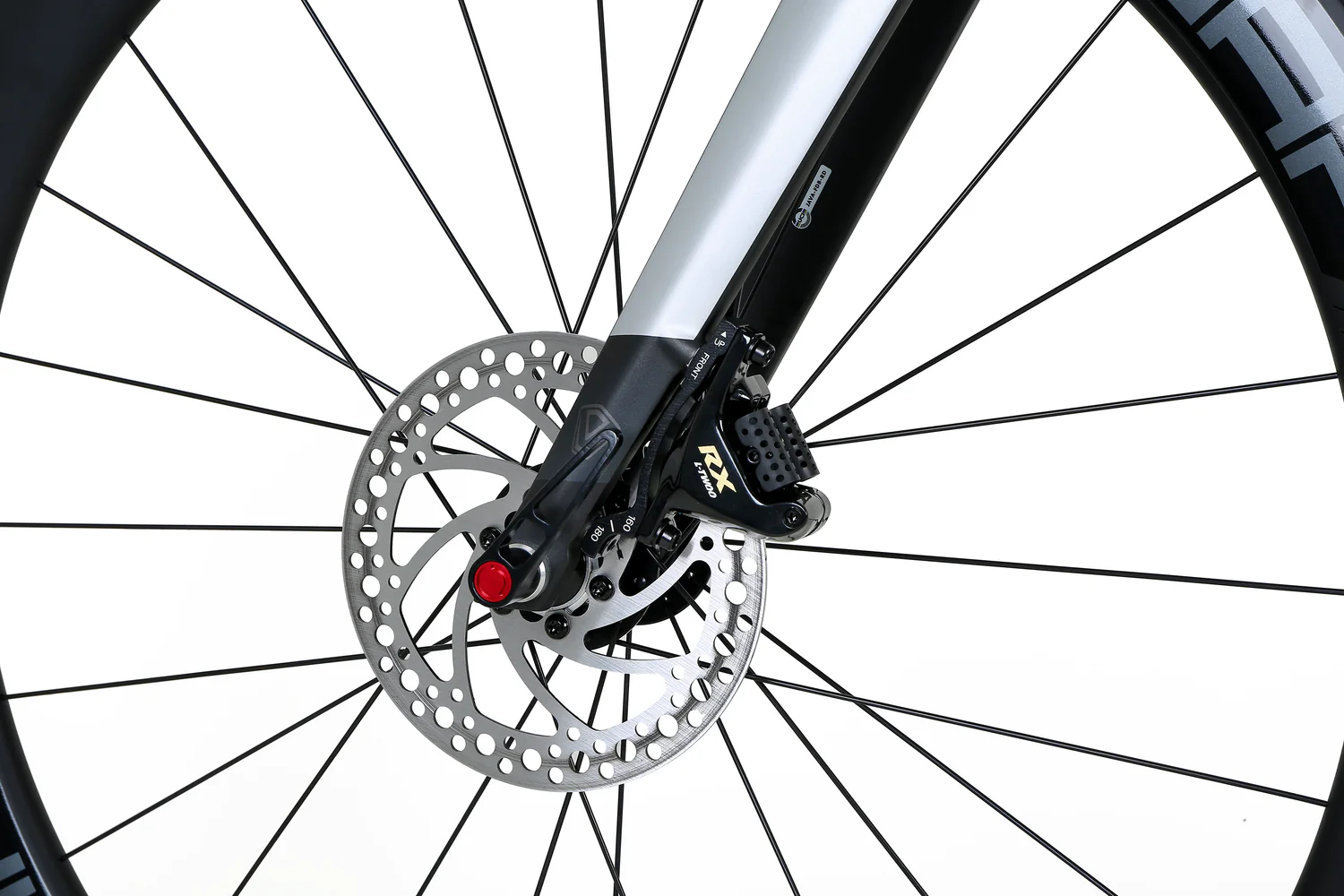

  • Brake: L-TWOO RX BR-R7020 hydraulic brakes Front 160mm rear 140mm rotors
  • Wheelset: Decaf 50mm Carbon disc wheel,24H
  • Tire: Michelin Dynamic sports 700X25C
  • Saddle: JAVA DECA Road saddle
  • Handlebars: JAVA Deca Aerodynamic Carbon Integrated Handlebar,40*90-110mm
  • Seat Post: J-AIR Carbon Aero
  • Pedal: Decaf CNC flat pedal
  • Weight: 9 kg in 48 size

Size Chart:

45:155-165cm

48:165-175cm

51:174-184cm

54:182-195cm

Frame size number 45 48 51 54 57
B-Seat tube 452 481 511 540 572
Q7-Seat tube angle  73.9°  73.6°  73°  72.7°  72.4°
L-Head tube length 77 95 131 143 161
Q1-Head angle 70.7°  70.9°  71.4°  72.7°  72.9°
N-Effective top tube 509 523 548 560 575
G-Fork Length full 371 371 371 371 371
H-Bottom bracket drop 70 70 70 70 70
RC-Chainstay length 405 405 405 405 405
F-Offset 46 46 46 46 46
FC-Front Center 567 577 594 591 600
WB-Wheelbase 962 972 988 986 995
C-Standover height 709 735 765 791 816
REACH-Frame reach 371 377 386 390 395
STACK-Frame stack 478 496 532 548 566
WHEEL SIZE 700C 700C 700C 700C 700C





Color

green, Matt Black, orange, White Blue

Size

45, 48, 51, 54
